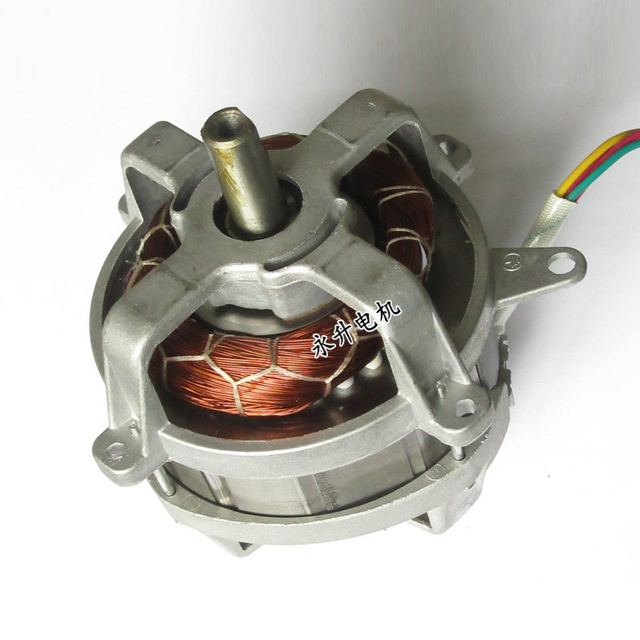

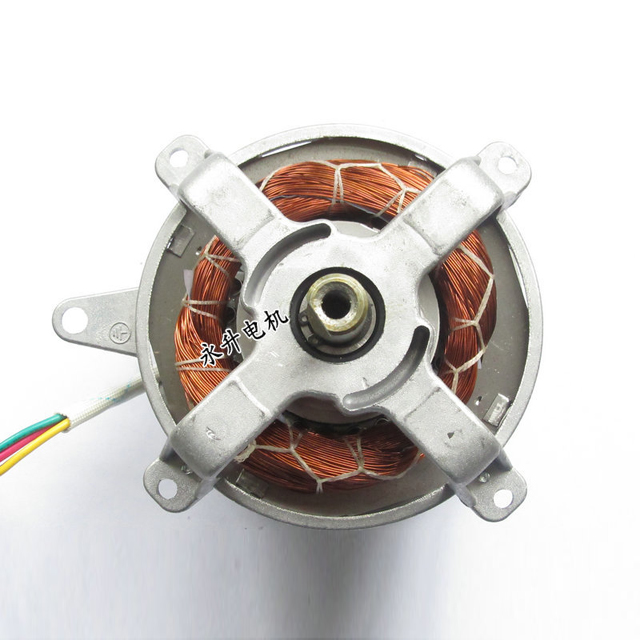

Mower motor YY-80Ⅴ
Mower motor YY-80Ⅴ
Size L1: 84-108 (adjusted according to power)
Size L2: can be customized according to user requirements
The shaft extension can be customized according to the user's requirements
Product features: lawn mower special motor, its unique structure, stable performance, brake to meet the requirements of 3S emergency stop.
技术参数Technical parameter
| 型号Model | YY-80 Ⅴ型 |
| 电压 Voltage(V) | 230/120 |
| 频率 Frequency(Hz) | 50/60 |
| 功率 Power(W) | 1100-1800 |
| 极数 Pole number | — |
| 转速 Speed(r/min) | 2800/3400 |
| 轴径 Axle diameter | Φ17 |
| 安装形式Installation | See diagram |
