Mower motor YY-71Ⅰ
Mower motor YY-71Ⅰ

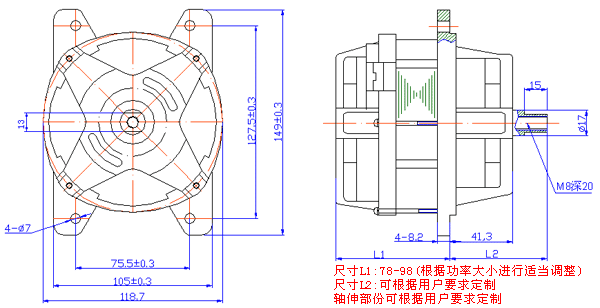

Size L1: 78-98 (adjusted according to power)
Size L2: can be customized according to user requirements
The shaft extension can be customized according to the user's requirements
Product features: lawn mower special motor, its unique structure, stable performance, brake to meet the requirements of 3S emergency stop.
技术参数Technical parameter
| 型号Model | YY-71 Ⅰ |
| 电压 Voltage(V) | 230/120 |
| 频率 Frequency(Hz) | 50/60 |
| 功率 Power(W) | 800-1000 |
| 极数 | — |
| 转速 Speed(r/min) | 2800/3400 |
| 轴径 Axle diameter | Φ17 |
| 安装形式Installation | See diagram |
Previous：
Mower motor YY-80Ⅳ
Next：
Mower motor YY-71Ⅲ
|
|
