Fan motor YY-F Ⅱ
Fan motor YY-F Ⅱ

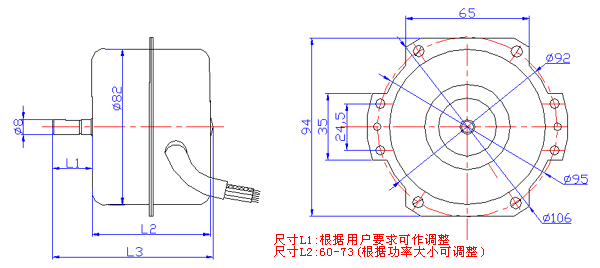

Size L1: can be customized according to user requirements
Size L2: 60-73 adjusted according to power
技术参数Technical parameter
| 型号Model | YY-F Ⅱ型 |
| 电压 Voltage(V) | 220 |
| 频率 Frequency(Hz) | 50/60 |
| 功率 Power(W) | 4-15 |
| 极数 Pole number | 4 |
| 转速 Speed(r/min) | 900-1300 |
| 轴径 Axle diameter | — |
| 安装形式Installation | See diagram |
